If you are specifying an underground storage tank for the first time, “double-wall” sounds like an upgrade — the premium option, with a cheaper single-wall alternative sitting underneath it. That is not really what it is. Double-wall construction is how modern USTs are built, and understanding why makes the rest of the specification much easier to read.
What the two terms actually mean
A single-wall tank is one vessel. Product on the inside, soil on the outside, one barrier between them. If that barrier fails anywhere, product enters the ground, and the first indication is usually an inventory discrepancy or a groundwater finding — both of which come long after the fact.
A double-wall tank is a primary vessel inside a secondary containment shell, with a deliberate gap between them called the annular space or interstice. A breach of either wall does not release product to the environment, because the other layer is still intact.
The gap is the entire point, and it is worth being precise about why.
The annular space is a detector, not just a spare wall
Two walls give you redundancy. The monitored gap between them gives you something more valuable: early warning.
Because the interstice is a sealed, defined volume, its condition can be monitored continuously. Depending on the system, that means watching for vacuum loss, pressure change, or the presence of liquid in the space. Any of those indicates that one of the two walls has been compromised — while the other is still holding.
That is the difference between a maintenance event and an environmental event. You find out when a wall is beginning to fail, not when product has been leaving the tank for months.
This is also why the interstitial monitoring connection matters on the spec sheet. A double-wall tank whose interstice is not actually being monitored gives you the redundancy but throws away the early warning, which was the better half of the deal.
What the jacket is made of
Double-wall is a configuration, not a material. The common constructions:

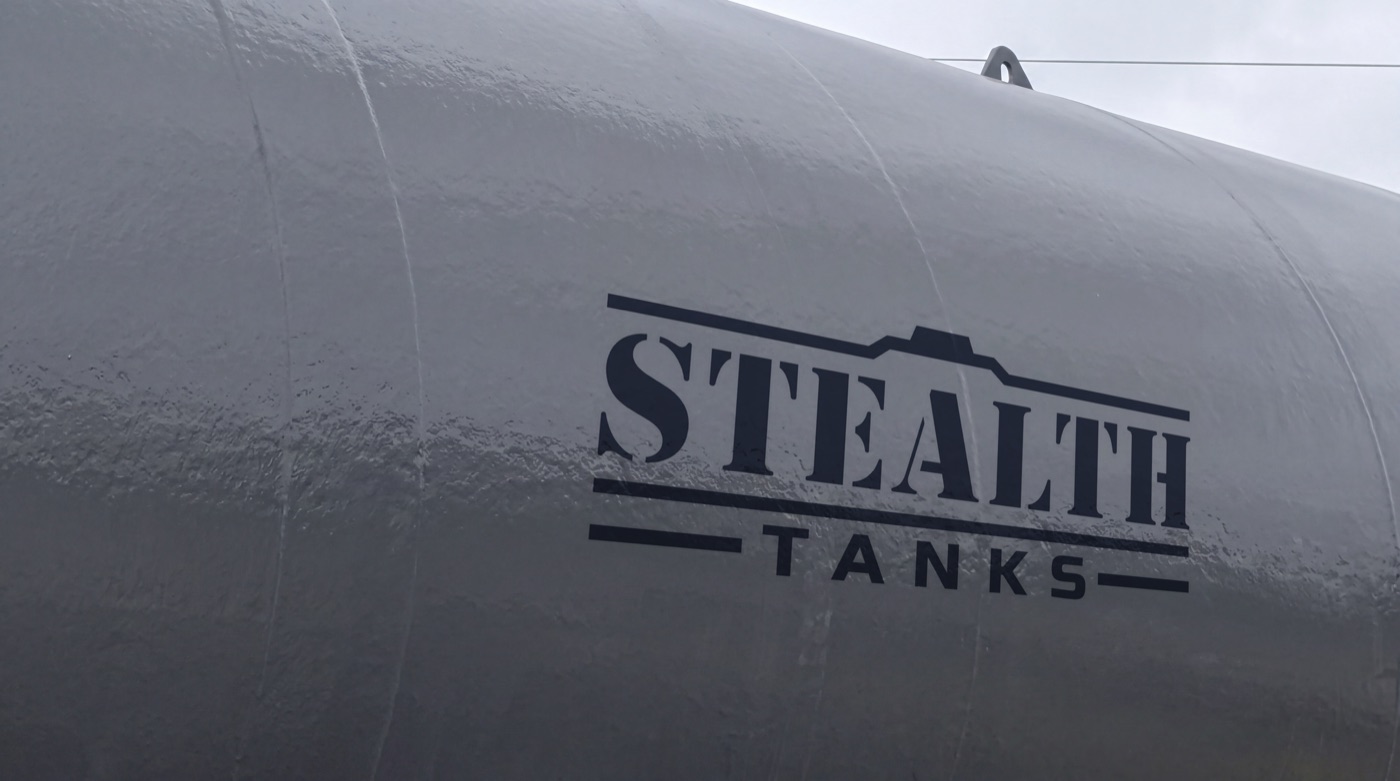

Steel primary with a polyethylene jacket
A carbon steel primary tank inside a high-density polyethylene outer jacket. The steel gives you the strength and the well-understood behaviour of a welded vessel; the HDPE gives you a non-corroding barrier against the soil, which is where steel tanks historically failed. This is what we stock.
Steel primary with a fiberglass composite jacket
Same principle, with a bonded fiberglass-reinforced coating instead of a separate polyethylene shell. Also a steel vessel with a corrosion-resistant exterior.
All-fiberglass (FRP)
Both walls are fiberglass-reinforced plastic. No steel means nothing to corrode, and FRP tanks are lighter, which changes the handling and sometimes the buoyancy calculation. They behave differently under point loads and demand more care in bedding and backfill.
There is no universally correct answer here. Steel-with-jacket and FRP have both been in the ground for decades and both work when installed properly. Installation quality is a larger determinant of tank life than the choice between them.
Why single-wall largely disappeared
Not because of any single decision, but because several forces pushed the same way:
- Detection. A single-wall tank offers no way to know it is failing until product is already gone. Inventory reconciliation catches large losses; it is poor at slow ones.
- Remediation cost. Cleaning up a release costs vastly more than the tank. One contaminated site can exceed the difference in construction cost across an entire fleet of tanks.
- Site value. Contamination history follows a property. It affects financing, sale, and redevelopment for decades.
- Insurance and lending. Both look closely at underground fuel storage, and both prefer secondary containment.
The result is that for new fuel-site construction, double-wall is simply what gets built. If you are looking at a single-wall tank today, it is almost certainly a used unit — and that carries a set of questions of its own, covered in new vs used underground storage tanks.
What to check on a spec sheet
When you are handed a tank specification, these are the lines that matter:
- Primary tank material and listing. For steel, UL 58.
- Secondary containment and its listing. UL 1746 for external corrosion protection systems on steel tanks; UL 1316 for FRP construction.
- Whether the annular space is defined and monitorable, and what monitoring port is provided.
- Compartment configuration, if it is a multi-product tank, and where the bulkheads sit.
- Manway and sump collar sizes, which determine what fits during installation and service.
- Empty weight and dimensions, which drive the crane, the excavation, and the anchoring design.
- Factory test records — pressure test on the primary, integrity test on the interstice.
Full specifications for the units we stock are on each tank's page — for example the 32,000 gallon double-wall UST.
The part that outweighs all of it
A correctly specified tank installed badly will fail before a modest tank installed well. The things that actually determine how long a UST lasts happen in the hole:
- Bedding and backfill to the manufacturer's specification, not whatever was already on site.
- Anchoring and ballast. On the Texas Gulf Coast the water table is often shallow, and an empty or partly filled tank will float if the hold-down system is under-designed. This is not a hypothetical failure mode here.
- Careful handling. Jacket damage during offloading and setting is one of the more common ways a new tank starts life compromised.
- Interstitial monitoring actually commissioned and confirmed working, not just installed.
When you evaluate a bid, weight the installation scope at least as heavily as the tank line. The tank is a catalog item. The hole is not.
Questions about your specific project? Call us at 346-209-2032 — we give straight answers, not sales pitches.
